15A MOSFET PWM Motor Speed and LED Brightness Control Module 5V–36V in Pakistan

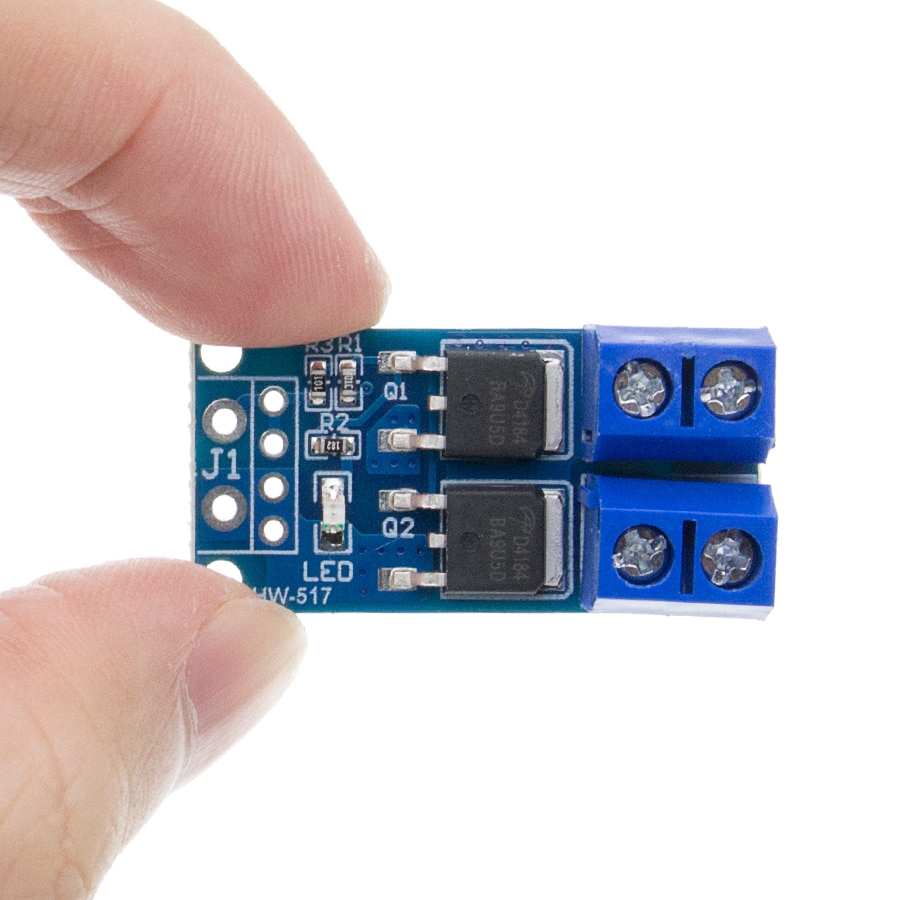

The 15A 400W MOSFET Trigger Switch Drive Module is designed for controlling DC electrical loads using digital switching or PWM signals. It features a dual-MOSFET configuration and screw terminals for convenient connection to compatible power supplies and devices.

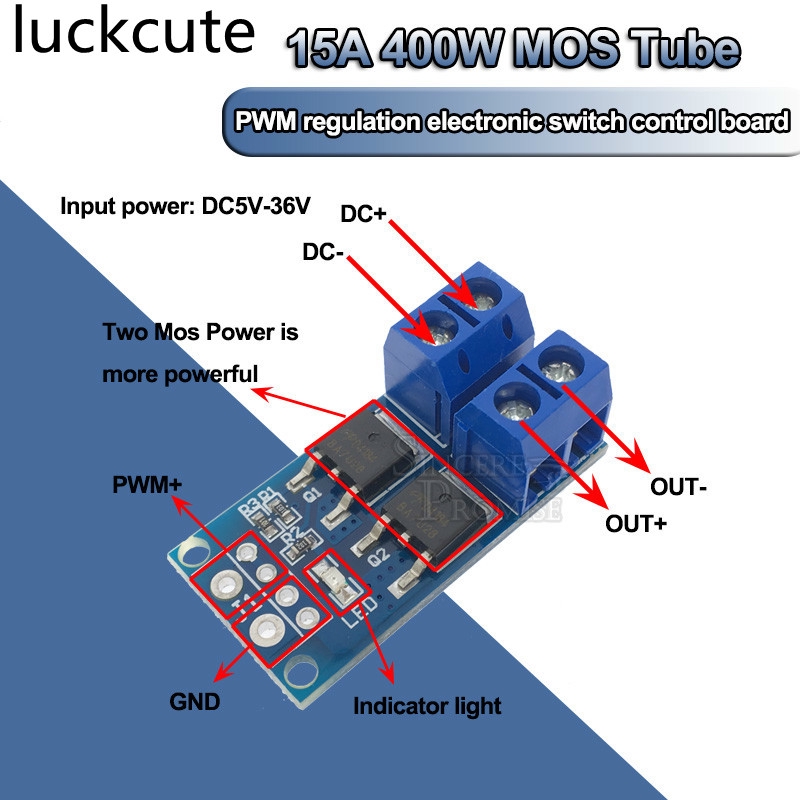

This module supports DC input voltages from 5V to 36V and accepts digital trigger signals from 3.3V to 20V. Its PWM input supports frequencies up to 20kHz, making it suitable for applications such as DC motor speed control, LED brightness adjustment, and electronic switching.

The module can be used with compatible DC motors, LED strips, small water pumps, bulbs, and solenoid valves. It is also suitable for Arduino, microcontroller, and PLC-based projects.

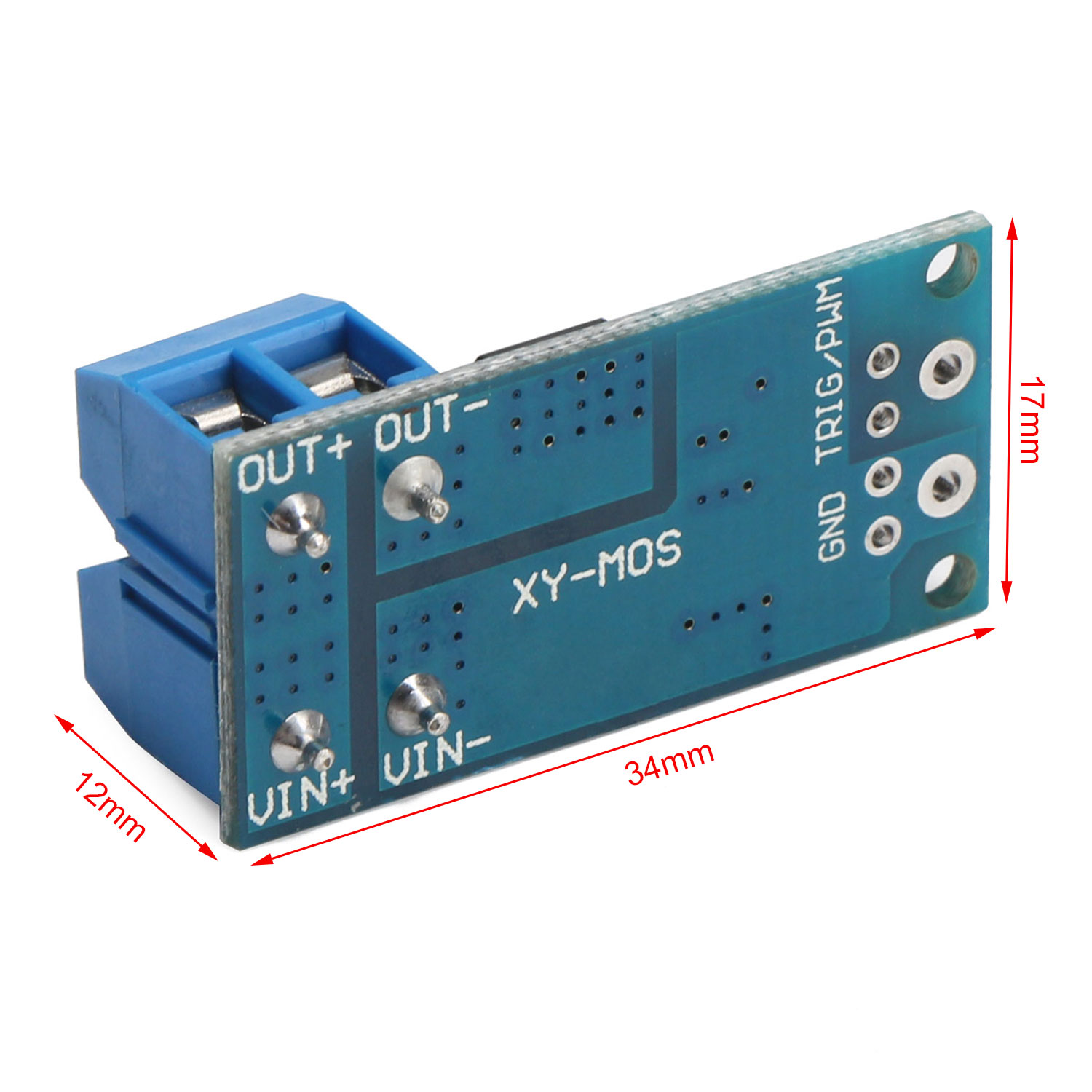

Product Dimensions: Approximately 34 × 17 × 12 mm (Length × Width × Height), according to published specifications for this module. Some versions may differ slightly in assembled height.

Electrical Ratings: Up to 15A continuous current and 400W under specified operating conditions. Higher current ratings require additional cooling and suitable wiring. Actual performance depends on voltage, load, heat dissipation, and installation.

Use an appropriate power supply and ensure correct polarity when connecting the module.
