3pcs Medium aileron hinge fixed wing aircraft airplane glider hinges in Pakistan

Features:

Medium aileron hinge fixed wing aircraft

Name: Loose leaf (hinges)

Uses: Used for the link of each rudder surface (aileron, elevator, rudder, etc.), with flexible rotation and convenient linkage;

Usage: When used in KT aircraft, first open a slot at both ends of the KT plate, and then apply hot melt glue to it. Then insert the hinge into it and pull it firmly. If it is used in light wood, On the plane, it is directly bonded with 502 glue.

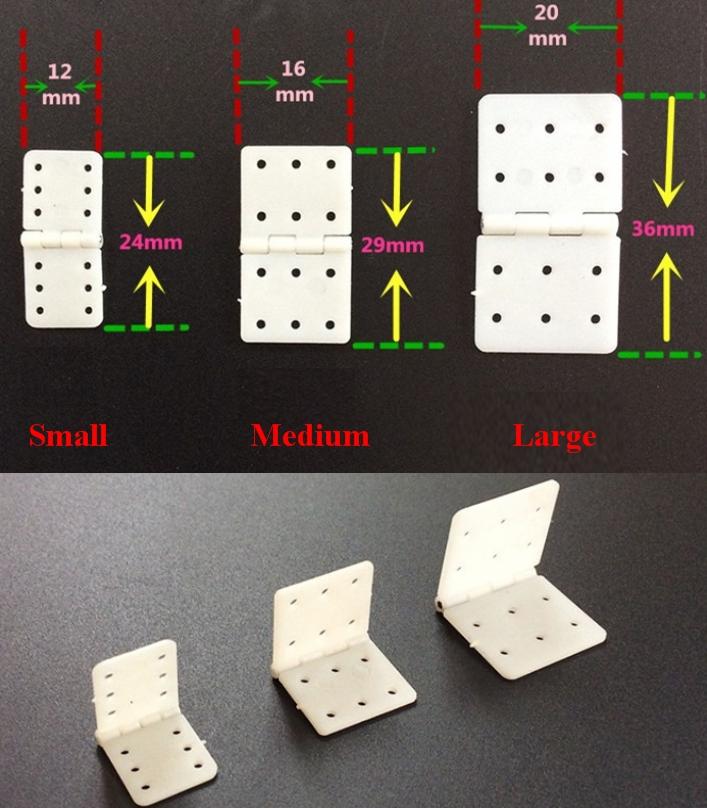

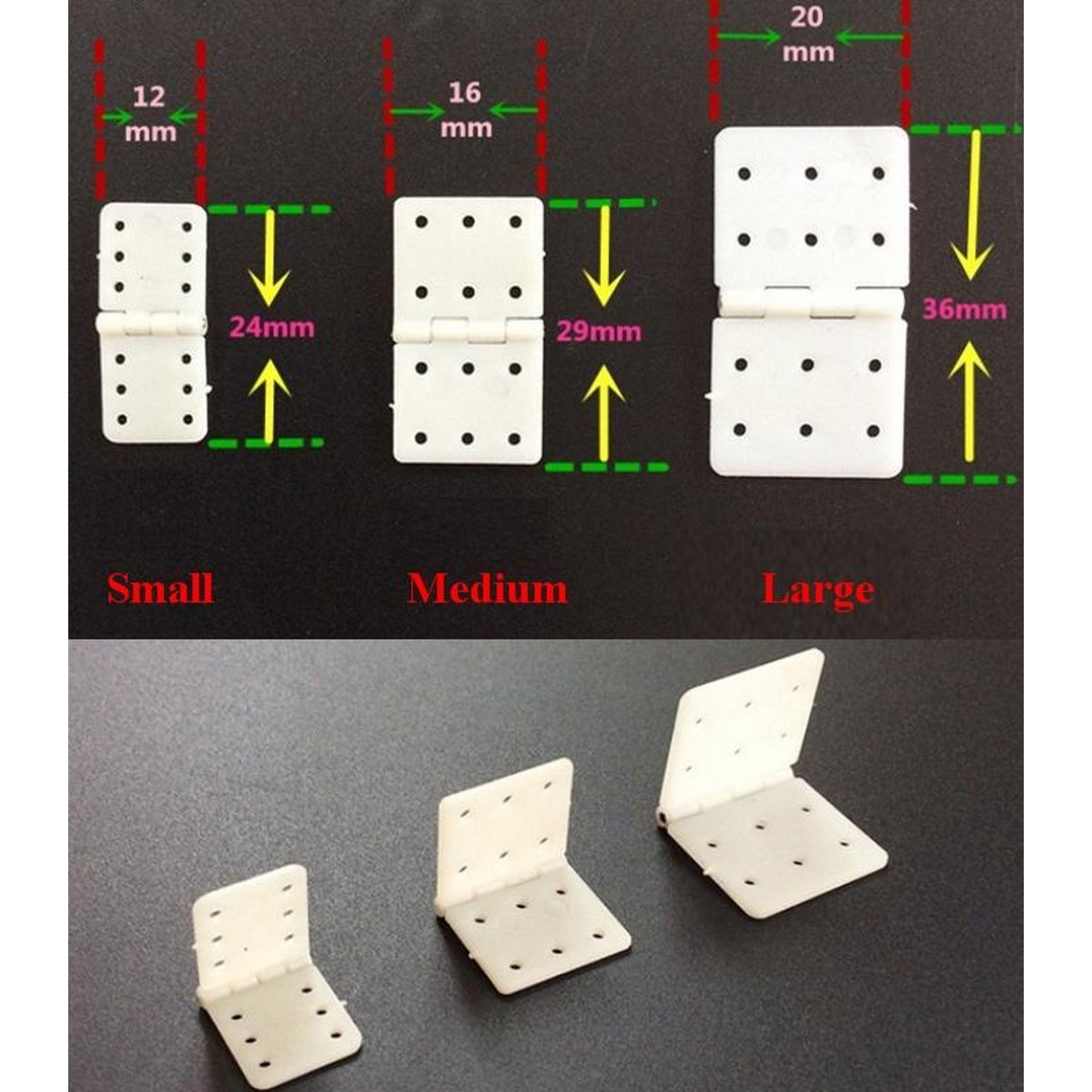

small: 24mm long and 12mm wide

Medium: 29mm long and 16mm wide

Large: 36mm long, 20mm wide

For rudder connection, whether it is a KT board or a small accessory that is required for EPP/opp/EPS.

Mainly used for aileron, rudder, elevator connection, up and down 90 degrees activities.
