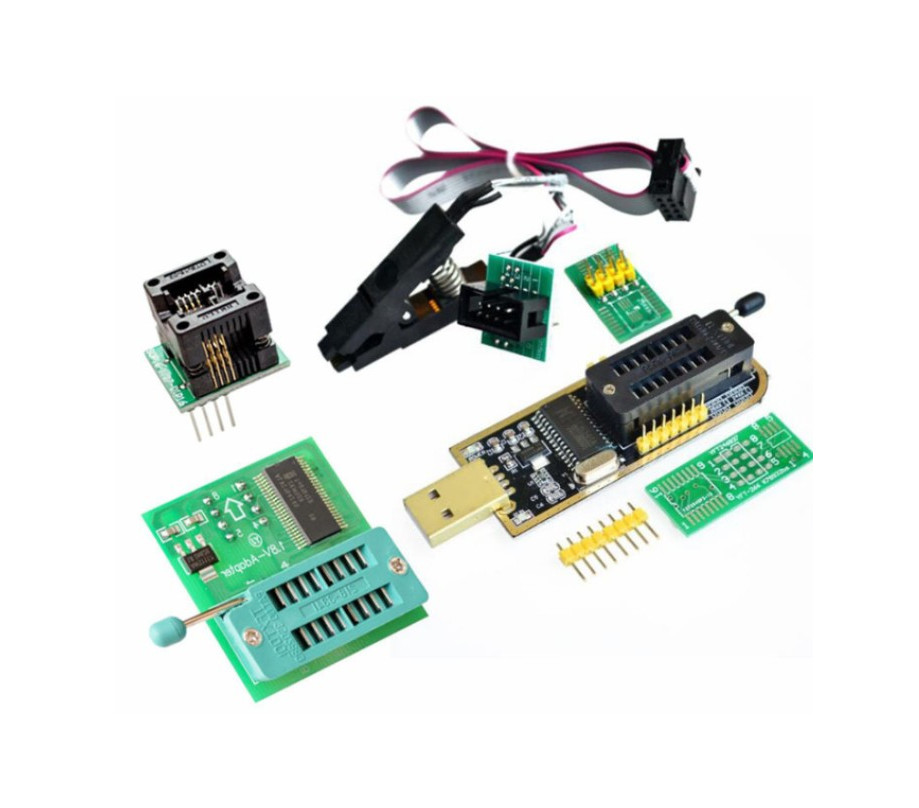

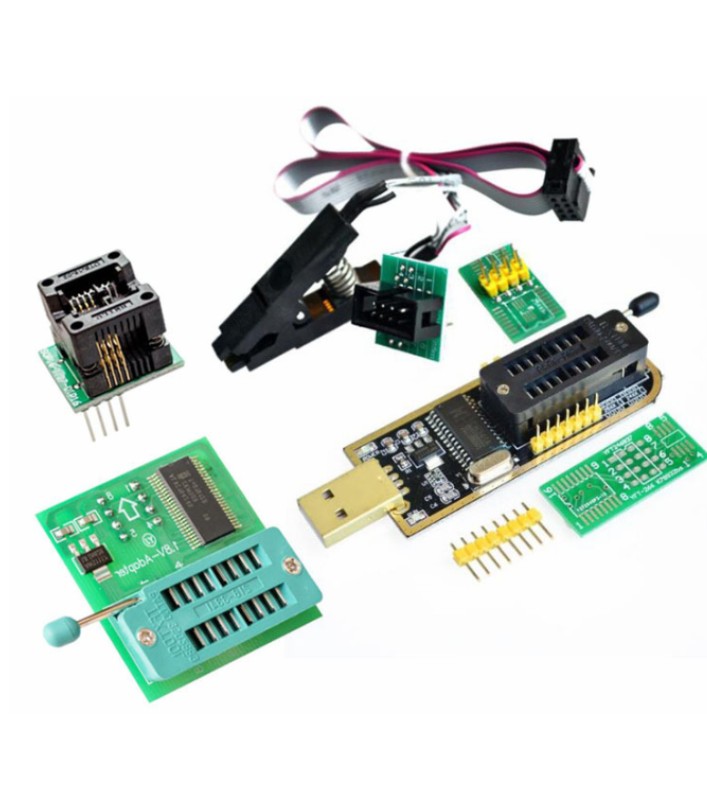

CH341A USB Programmer + SOP8 Test Clip + 1.8V BIOS DIP8 converter in Pakistan

Features:

CH341A USB Programmer + SOP8 Test Clip + 1.8V Adapter + SOP8 to DIP8 Converter Module CH341A 24 25 Series Programmer


Support 24EEPROM and 25 SPI flash 8pin/16pin chip
USB to TTL port, can getroot online
With CH341A chip
Recognize 25 series chip automatically
And support download STC series procedure of singlechip
With 24/25 status indicator lamp
SPI pin to support expanding the utility


When encountering the programmer with protected function, the clamp cannot be read out under normal voltage. At this time, a 3.3v voltage should be added. The method is as follows: the clamp clamps the chip, and the clamp corresponding to the 8th pin of the chip adds a 3.3v voltage. Generally, the power supply of 3.3v has two wires, so it is ok for VCC to connect the clamp and the other wire to be directly grounded


Conversion block can use some chips is 1.8v such as huabang w25q64, wang hong mx25u1635, mx25u6435 and so on in 3.3v programmer for conversion burn. These chips are typically used on the motherboards of apple computers.
