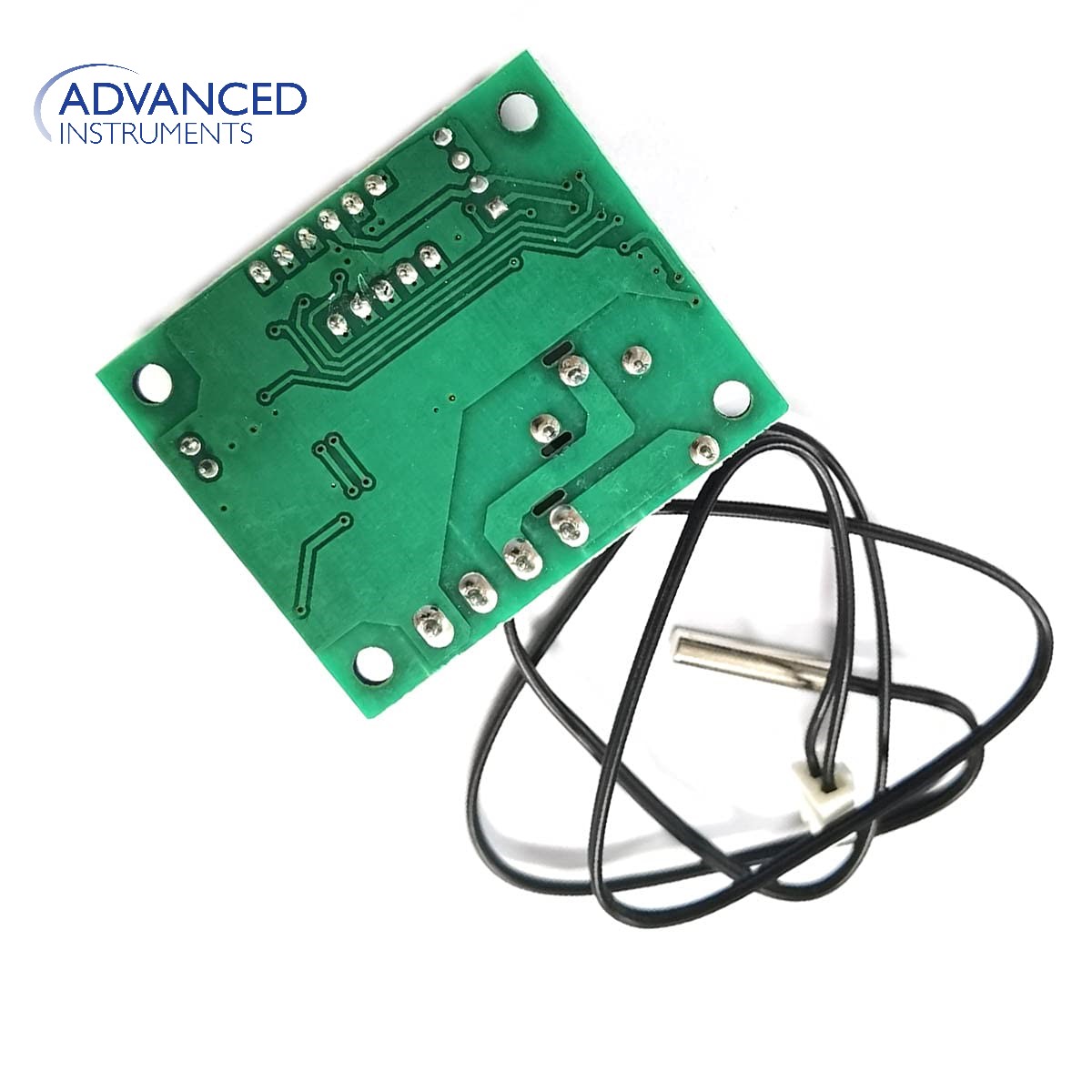

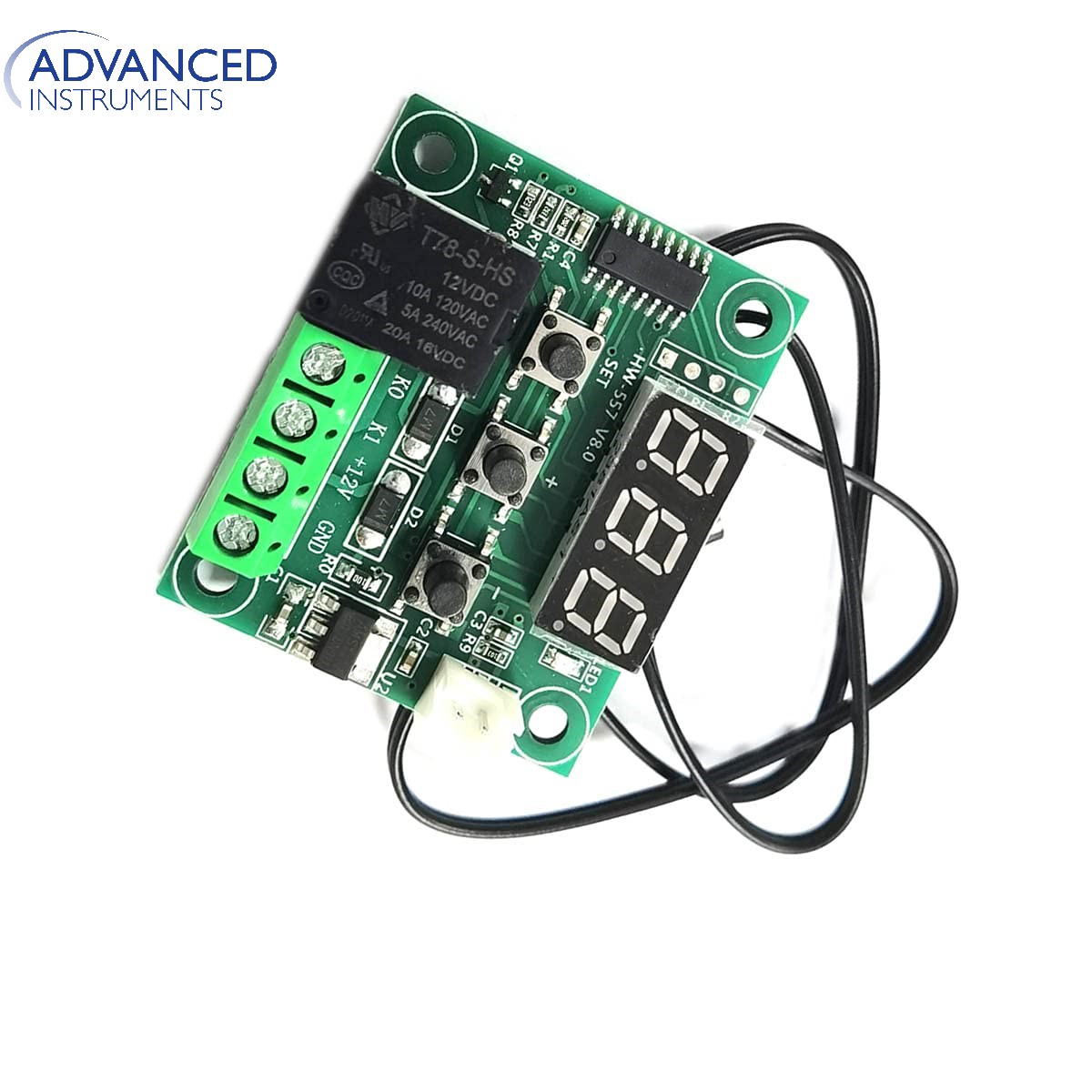

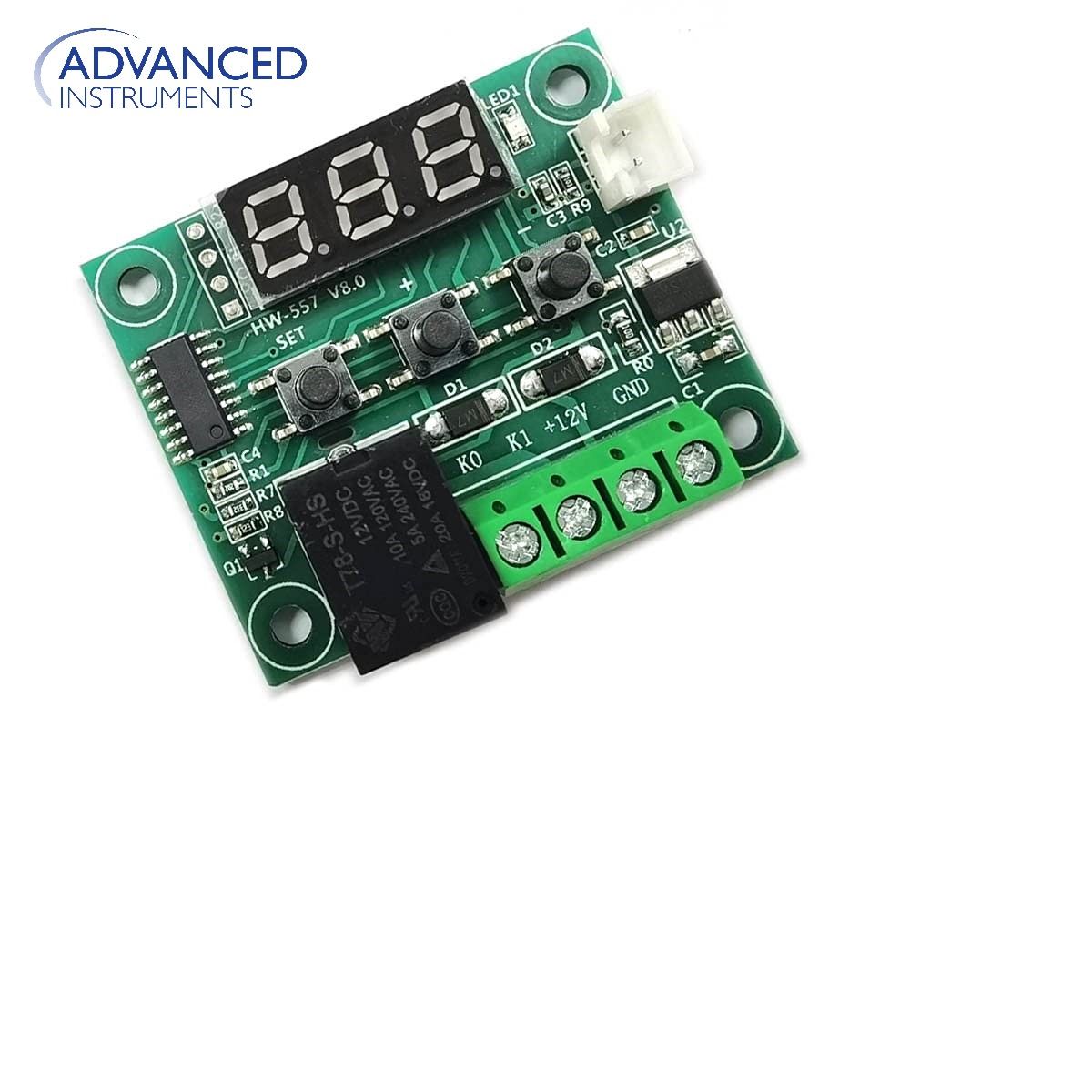

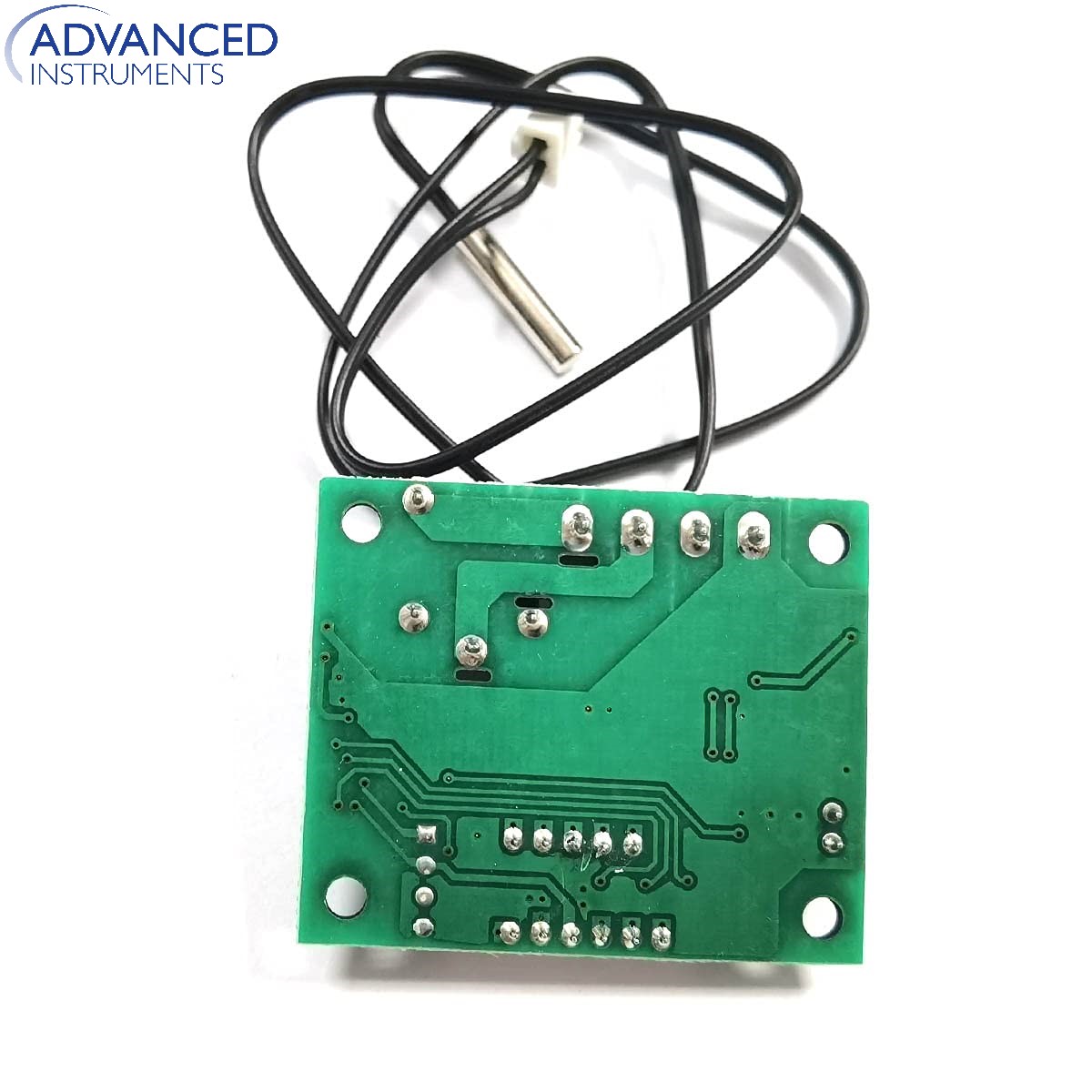

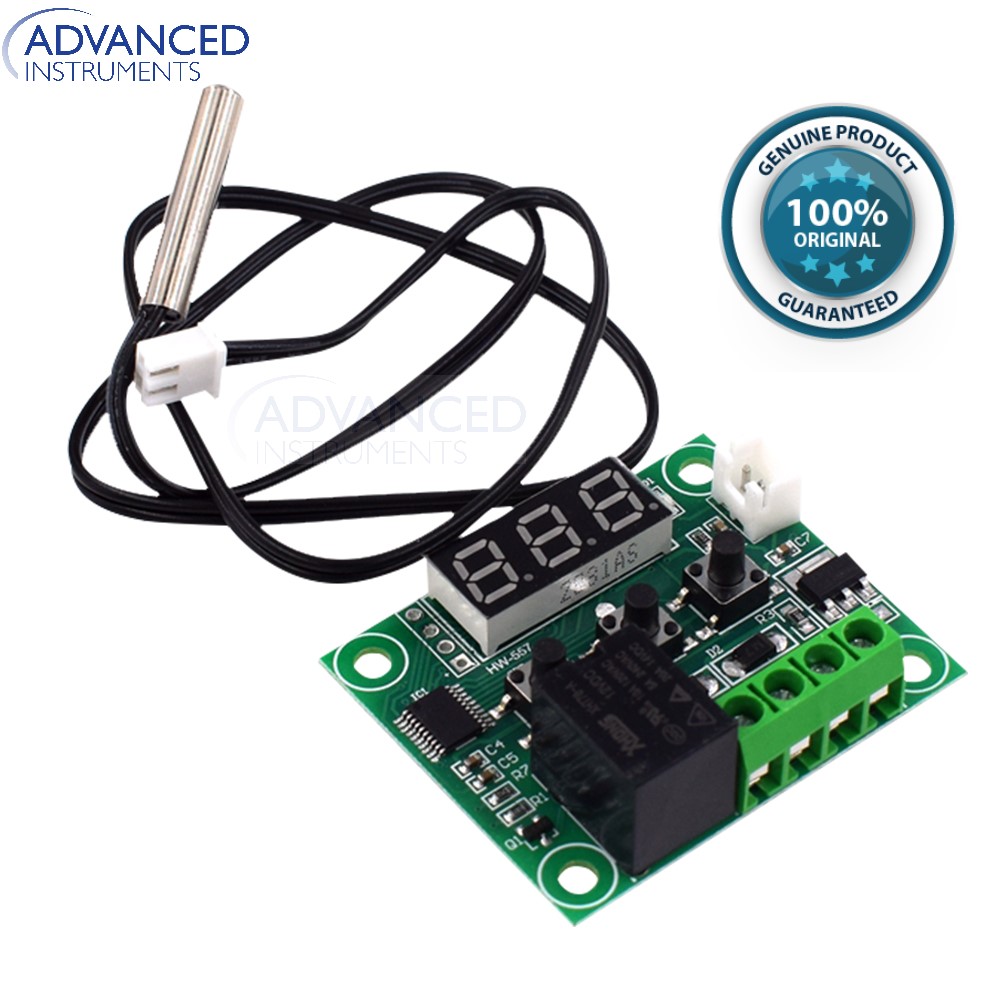

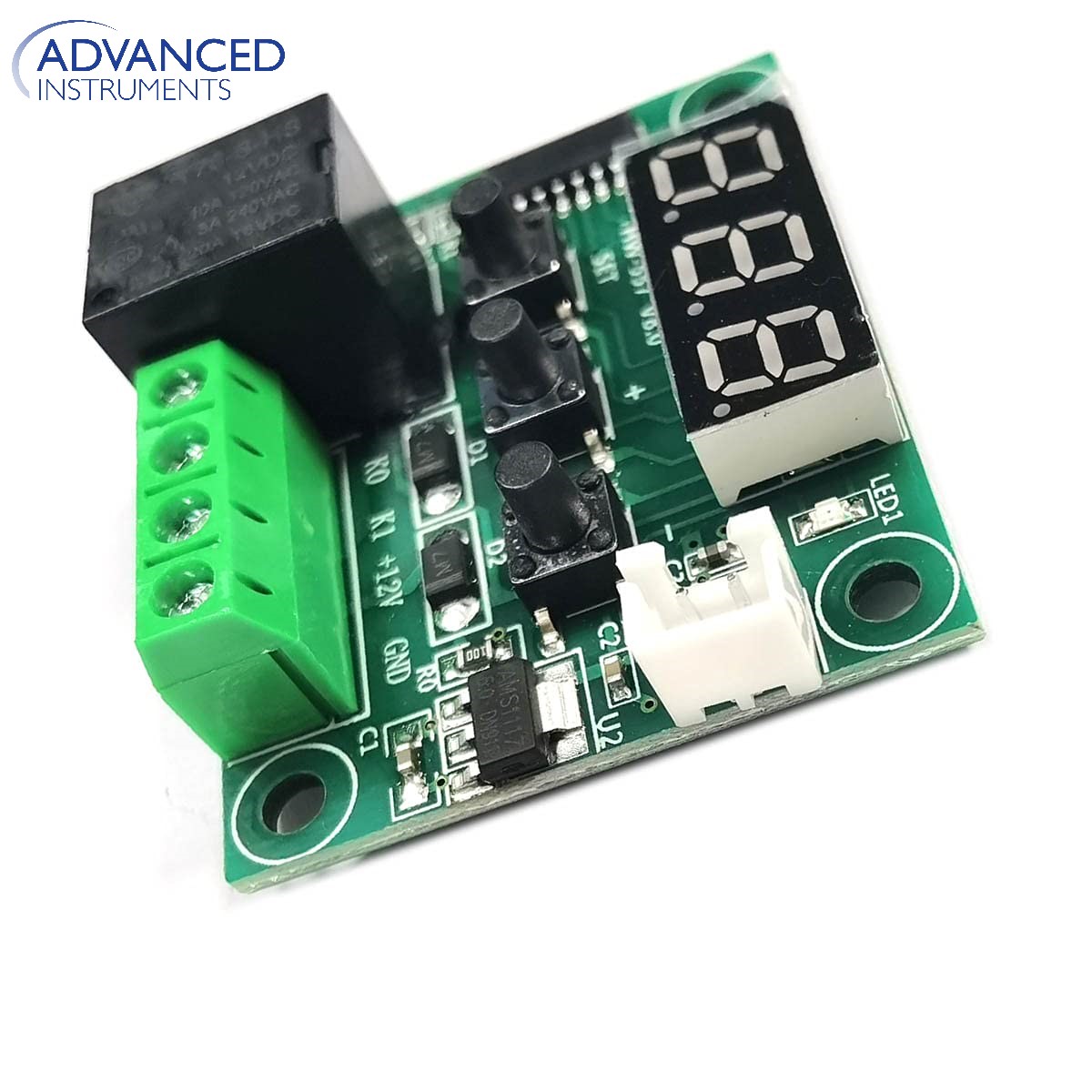

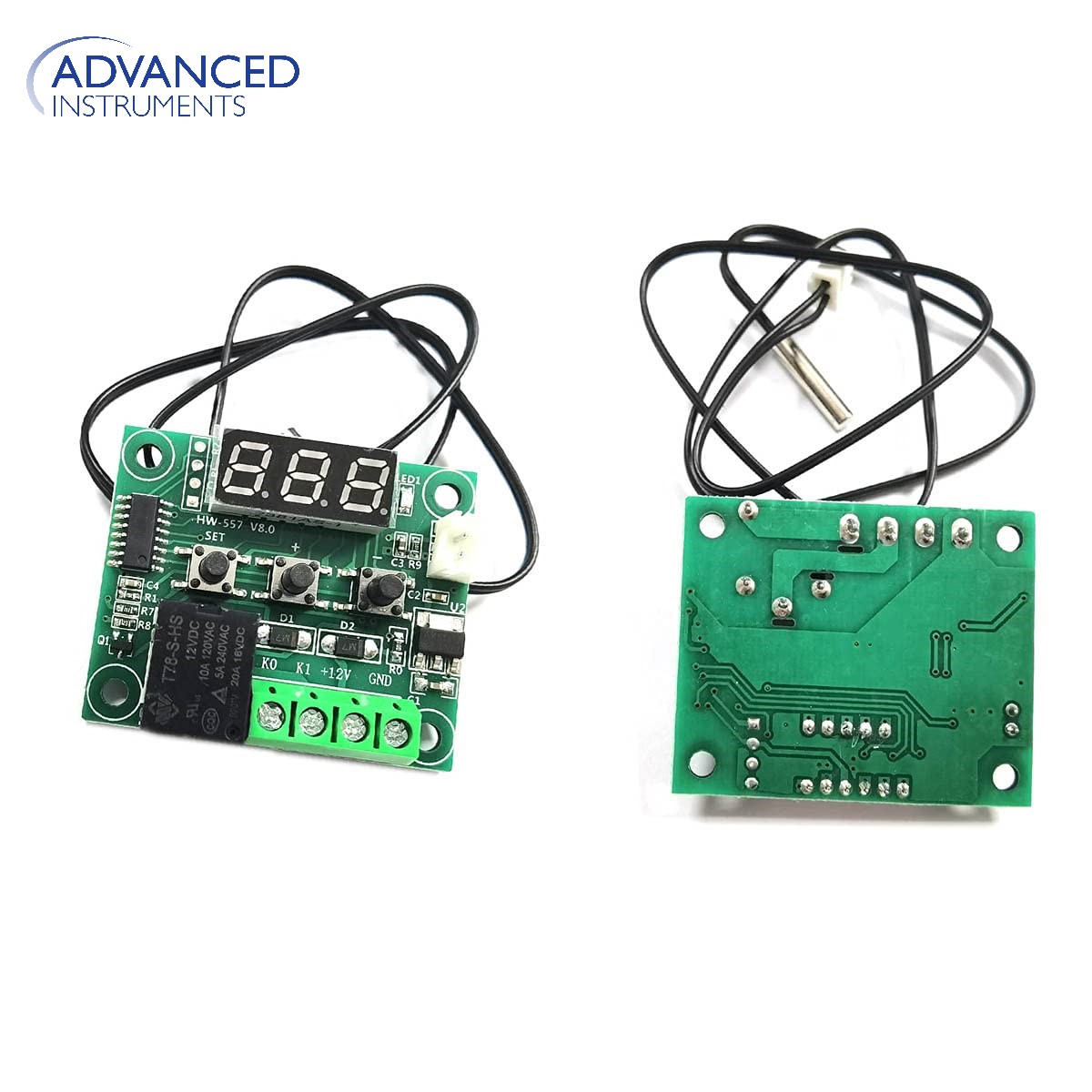

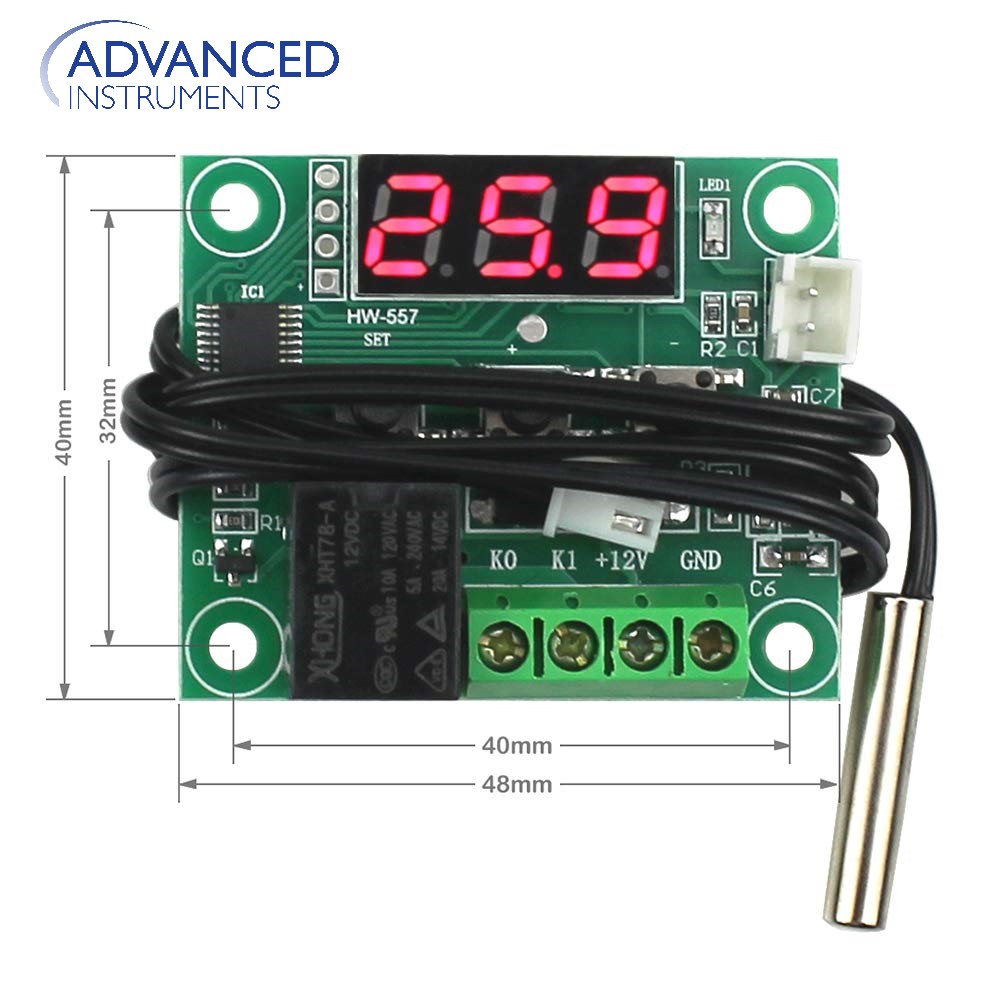

Original HW W1209 12V DC Digital Temperature Controller Board Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch with 10A One-Channel Relay and Waterproof Sensor For Incubator Controller in Pakistan

KHREED.PK
( 0 Stars Rating )

Rs. 0

In Stock

Color Family


Quantity

Buy Now Add to Cart
  • Features
    • Temperature range :-50-110 ℃
    • Temperature control mode: ON / OFF
    • Control accuracy: 0.1 ℃
    • Refresh rate: 0.5S
    • High temperature protection： 0-110℃
    • Supply voltage: DC 12V
    • Static current: ≤ 35MA, attract current ≤ 65MA
    • Output voltage: DC 12V
    • Output power: 20A relay

SKU:

Categories & Tags: Pet Supplies, Small Pet, Imported, Pakistan, Discount, High Quality

Share:

Features:

  • Temperature range :-50-110 ℃
  • Temperature control mode: ON / OFF
  • Control accuracy: 0.1 ℃
  • Refresh rate: 0.5S
  • High temperature protection： 0-110℃
  • Supply voltage: DC 12V
  • Static current: ≤ 35MA, attract current ≤ 65MA
  • Output voltage: DC 12V
  • Output power: 20A relay

Description:

  • Temperature range :-50-110 ℃
  • Temperature control mode:ON / OFF
  • Control accuracy:0.1 ℃
  • Hysteresis accuracy:0.1℃
  • Refresh rate:0.5S
  • High temperature protection：0-110℃
  • Supply voltage:DC 12V
  • Static current:≤ 35MA, attract current ≤ 65MA
  • Output voltage:DC 12V
  • Output power:20A relay
  • Measurement input:NTC (10K 0.5%) Waterproof Sensor
  • Environmental requirements: -10 ~ 60 ℃ ，Humidity 20% -85%
  • Resolution：When temperature is 0.1℃, the resolution is -9.9~99.9, other temperature segment is 1℃
  • How to use:
  • Connect the power supply and the load, you can supply to the controller.
  • It displayed as a measured temperature.
  • Press the SET button, the display flashes the temperature;
  • Press – to set the desired temperature;
  • After setting press SET to confirm return;
  • The controller automatically performs the relay by setting off!
  • Lights, LED status descriptions:
  • Indicator:Off The relay is switched off, Always indicate the relay is closed.
  • LED:Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display — as high temperature protection.
  • Buttons:
  • P0 :Cooling / Heating; Range: C/H; Default: C
  • P1 :Hysteresis Setting; Range:0.1-15; Default: 2
  • P2 :Highest Setting Limit; Range:110; Default: 110
  • P3: Lowest setting Limit; Range:-50; Default: -50
  • P4 :Temperature Correction; Range:-7-7°c; Default: 0°c
  • P5: Delay Start Time; Range:0-10 Minute; Default: 0
  • P6: High temperature alarm; Range:0-110; Default: Off
  • When the Thermostat is power off, long press “- or +”, you can restore the factory settings.
