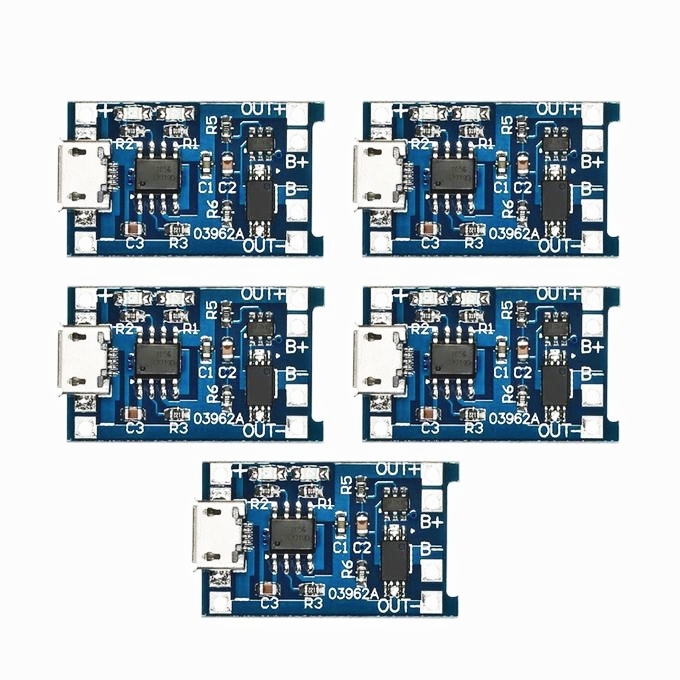

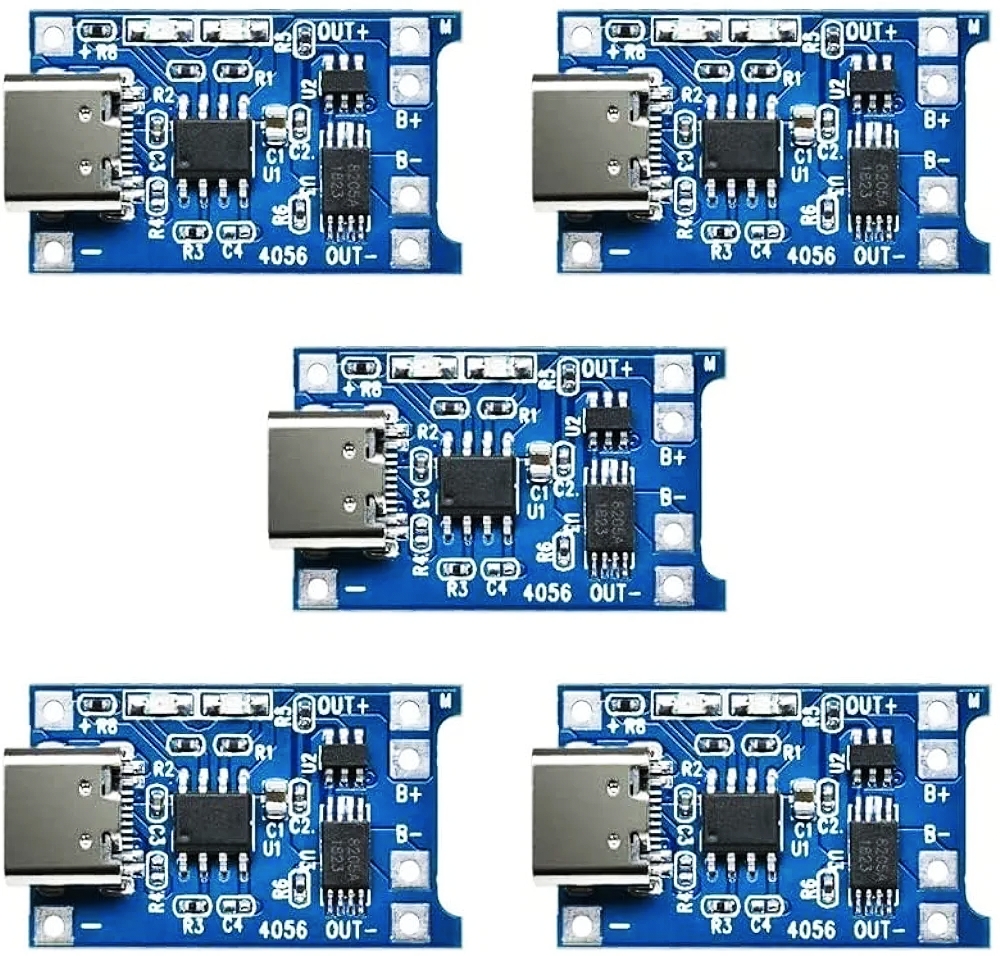

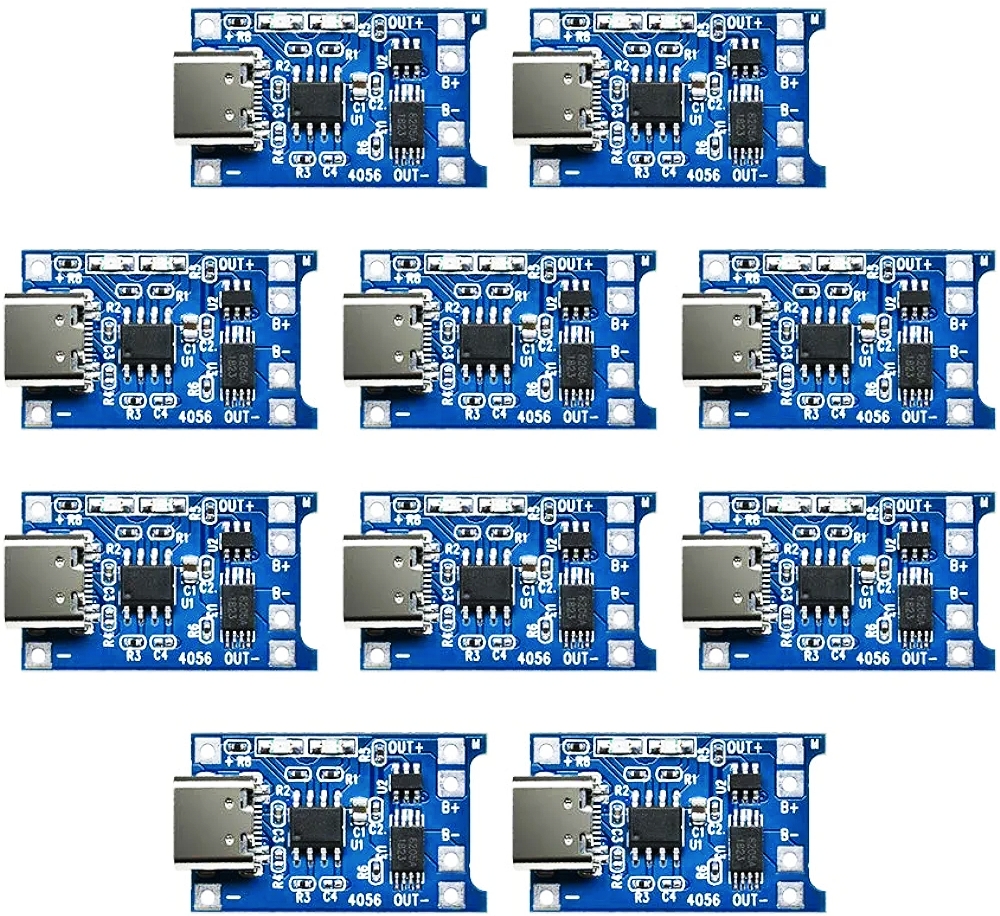

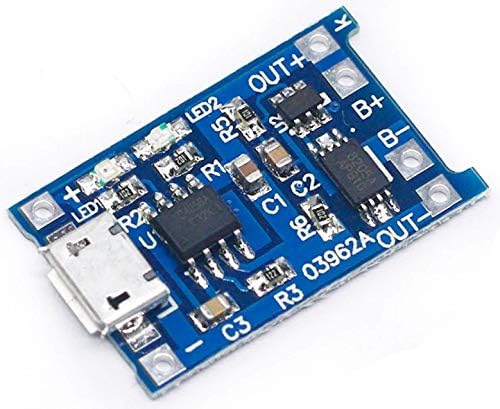

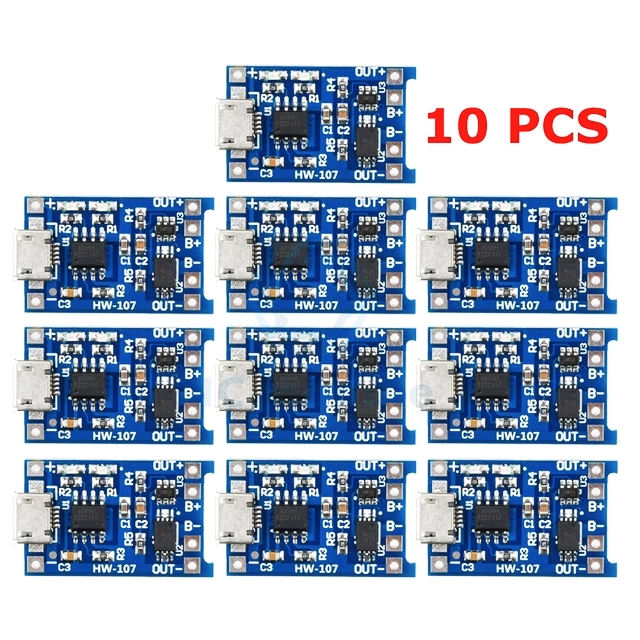

TP4056 Type-C / Micro-USB 5V 1A 18650 Lithium Battery Charger Module Li-ion Charging Board with Dual Protection Functions in Pakistan
KHREED.PK
Rs. 0
In StockColor Family
SKU:
Categories & Tags: Toys & Games, Remote Control & Play Vehicles, RC Vehicles & Batteries, Imported, Pakistan, Discount, High Quality
Share:
Features:
- Charge and Discharge Protection Module, Input Voltage: DC 5V, End-of-Charge Voltage: 4.2V +/- 1%, Max Charge Current: 1000mA
- MULTIPLE PROTECTION'S: This module is used for single lithium ion / lipo / 18650 cell or multiple cell in parallel, this board have overcharge, over discharge and overcurrent protection; battery over-discharge protection voltage is 2.5V, battery over current protection current is 3A
- With Overcharge, Discharge, Over-Current Protection function, Battery Discharge Protection Voltage: 2.5V, Battery Over-Current Protection Current: 3A

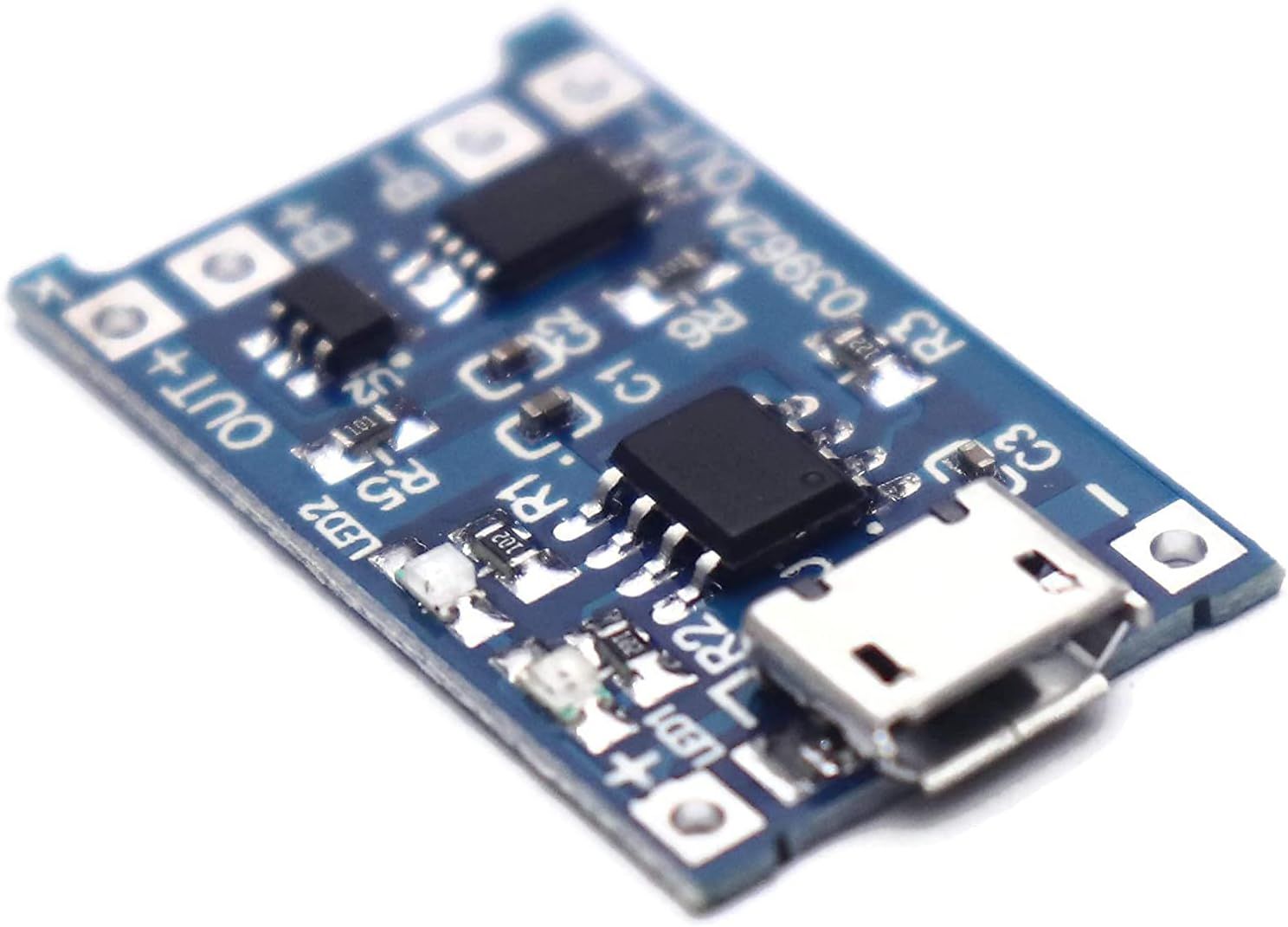

- With Micro USB socket at the input port, can directly use the phone charger as input to charge for lithium battery, and keep connection solder joint. Convenient to DIY.

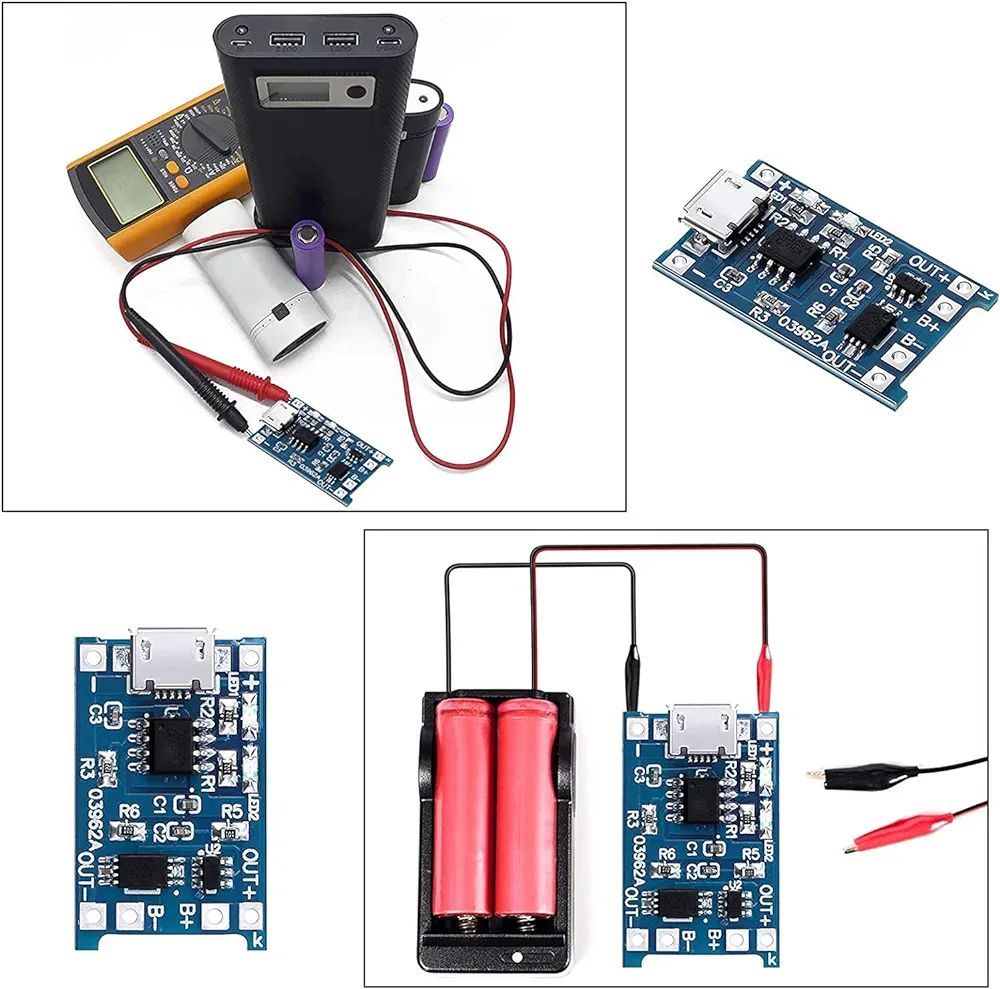

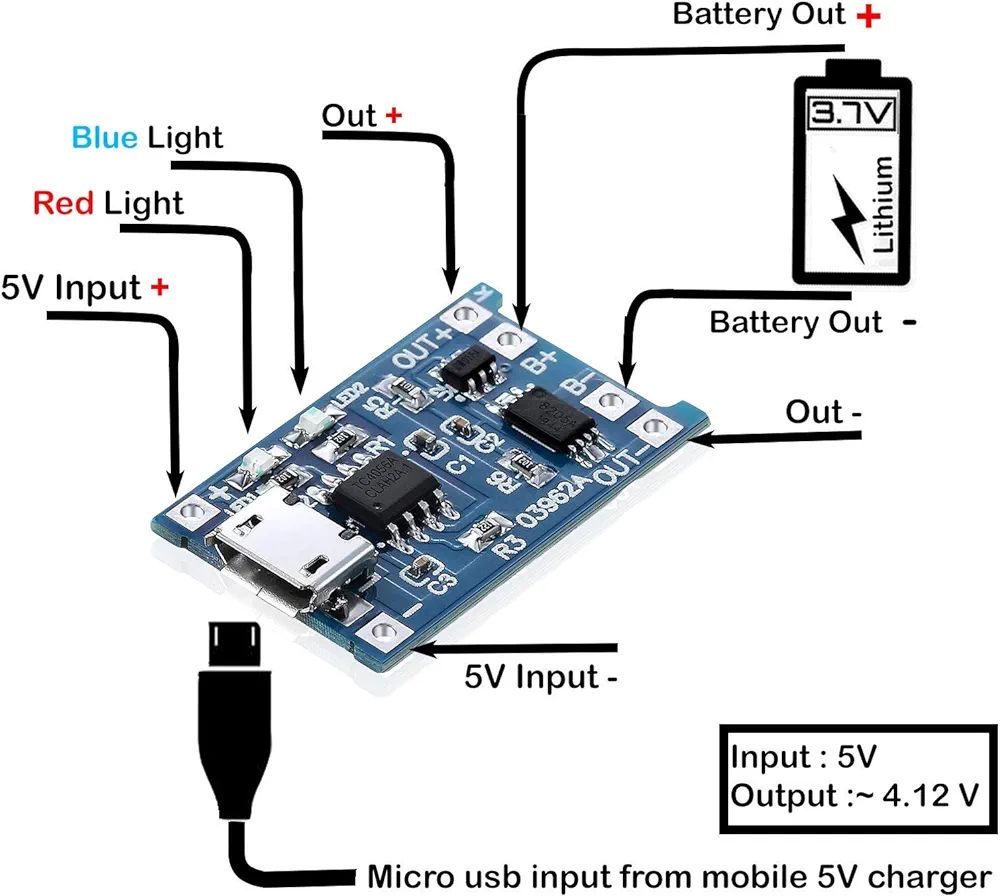

- After connecting the lithium battery to B+ and B-, join up 5V input, red light indicates on charge, green light indicates fully charged.
Description:

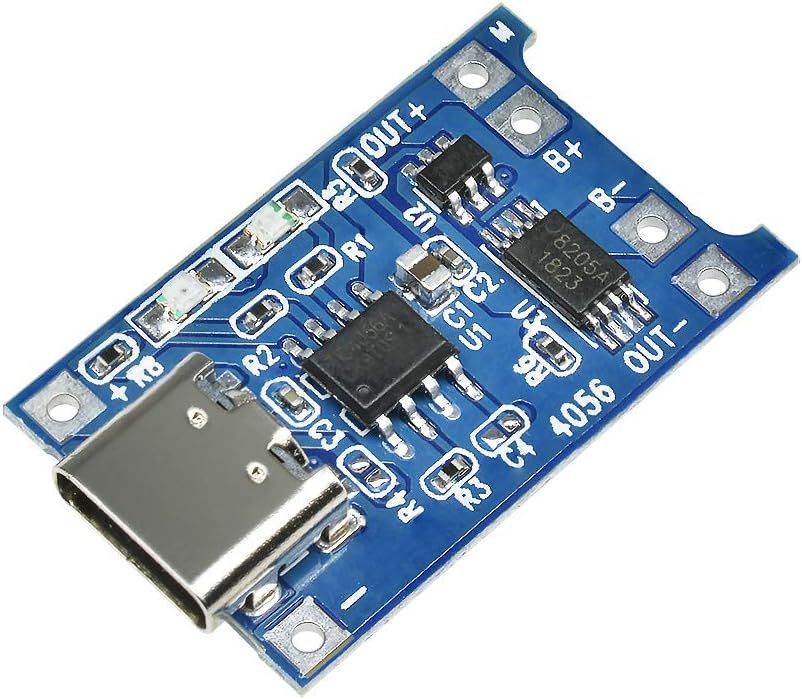

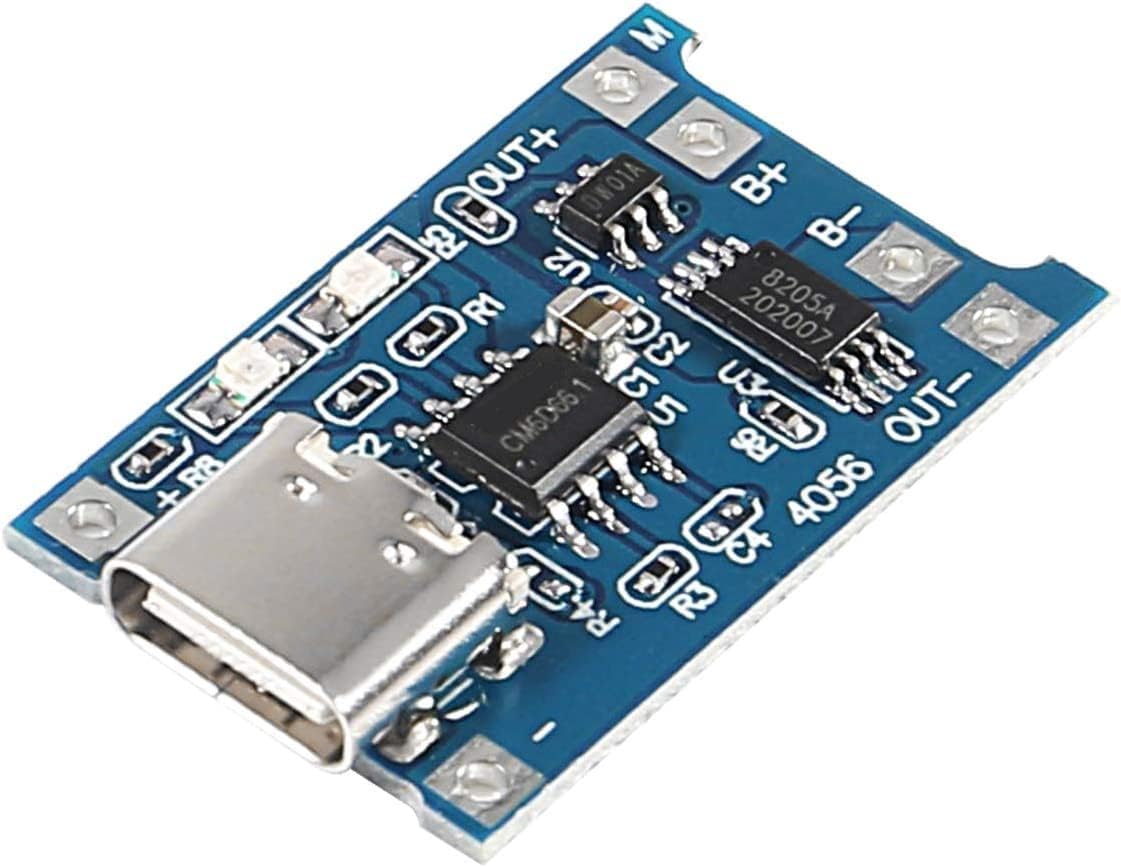

Input interface: Type-C/ Micro-Usb
The input voltage: 4.35-6V (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery discharge termination voltage: 3.2 V
Battery: over-current protection current 3 A

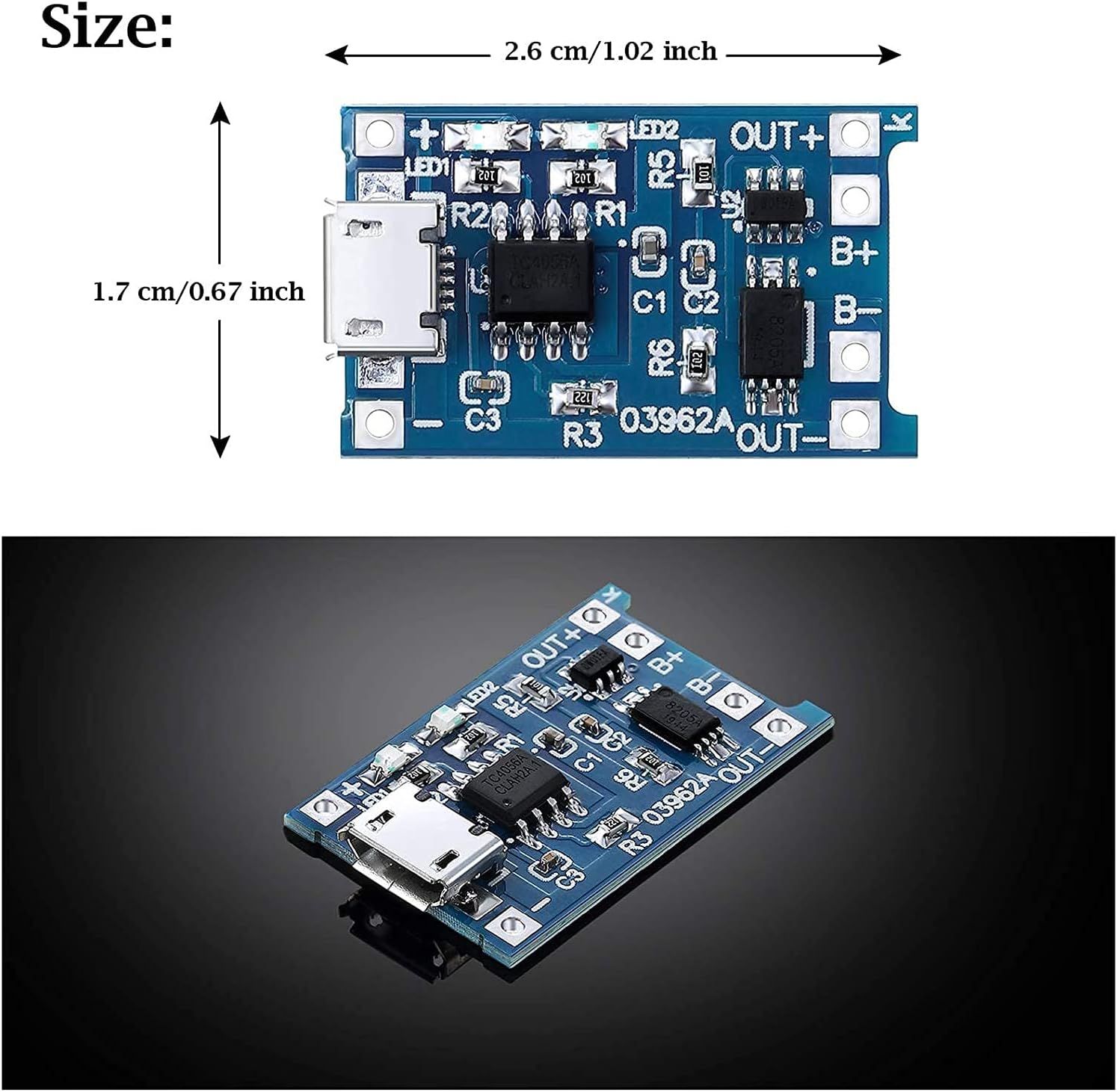

The board size: about 2.5 * 1.65 CM
Instructions:

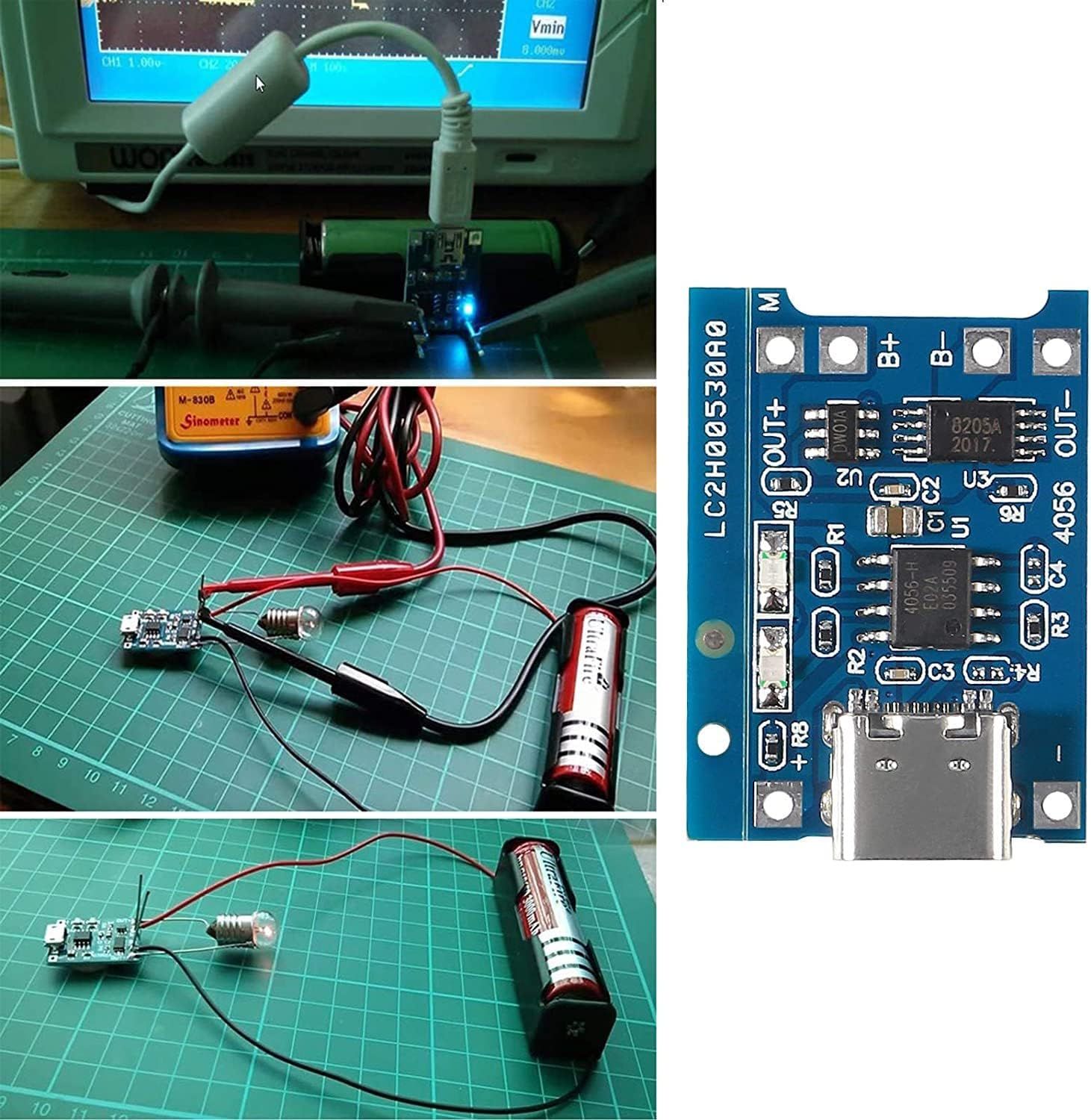

1. When the battery is connected for the first time, there may be no voltage output between OUT+ and OUT-. At this time, the protection circuit can be activated by charging with a 5V voltage. If the battery is short-circuited from B+ B- and then connected again It needs to be charged to activate the protection circuit.
2. When using a mobile phone charger for input, please note that the charger must be able to output 1A or above, otherwise it may not be able to charge normally.

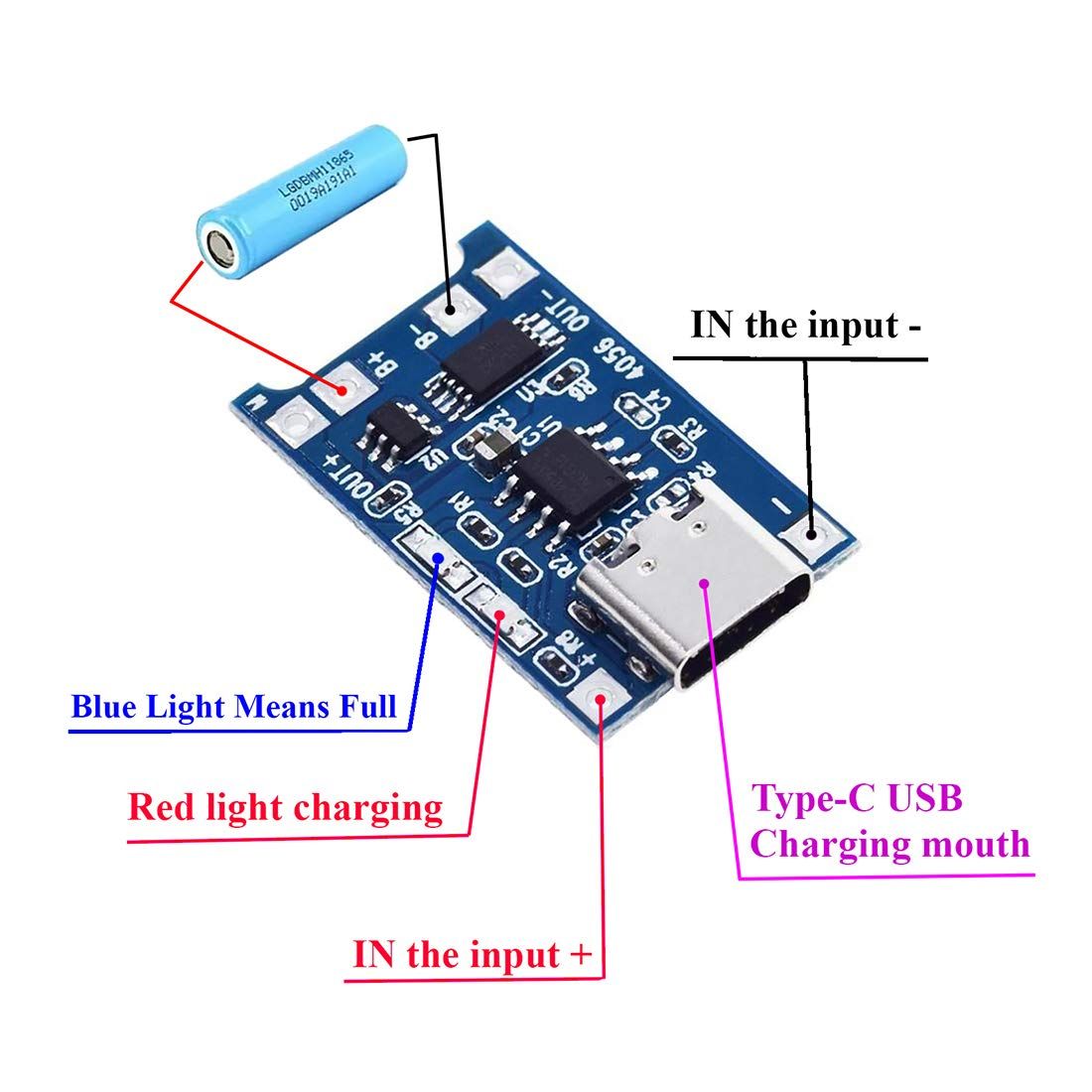

3. Connect the battery to B+ B-, insert the mobile phone charger into the USB socket, no load the light not bright, red light for recharging, is full of green light.
The input voltage: 4.35-6V (recommended voltage 5 v)
Charge cut-off voltage: 4.2 V + / - 1%
Maximum charging current output: 1000 ma
The battery overcharge protection voltage: 4.28 V
Battery overcharge lifting voltage: 4.00 V
The battery discharge protection voltage: 3.0 V
Battery discharge termination voltage: 3.2 V
Battery: over-current protection current 3 A
The board size: about 2.5 * 1.65 CM
Instructions:
1. When the battery is connected for the first time, there may be no voltage output between OUT+ and OUT-. At this time, the protection circuit can be activated by charging with a 5V voltage. If the battery is short-circuited from B+ B- and then connected again It needs to be charged to activate the protection circuit.
2. When using a mobile phone charger for input, please note that the charger must be able to output 1A or above, otherwise it may not be able to charge normally.
3. Connect the battery to B+ B-, insert the mobile phone charger into the USB socket, no load the light not bright, red light for recharging, is full of green light.
