W1209WK (W2809) Temperature Controller -50 to 110 Celsius DC 12V Programmable Heating/Cooling Thermostat Control Switch Module NTC Waterproof Sensor Probe Dual Color LED Display Monitor For Incubator , Fish Tank Water Aquarium Temperature w1209 wk in Pakistan

Product Description:

Product Name: Programmable Dual LED Display Temperature Controller

Operating Voltage: DC12V 200mA

Measurement Range: -50 to 110 Celsius (-58 to 230 F)

Elaboration Precision: +/-0.1 Celsius

Control Precision: 0.1 Celsius

Backlash Precision: 0.1 Celsius

Refresh Rate: 0.5s

High Temperature Protection: 0 to 60 Celsius (32 to 230 F)

Temperature Sensor Type: 10K 0.5% NTC

Operating Temperature: -10 to 60 Celsius (14 to 140 F)

Compatible Load: 5A / 15A 220VAC; 20A 14VDC

Power Consumption: Less than and equal to 35mA (Static), Less than and equal to 65mA (relay closure)

Module Size: 48x29x32mm / 1.89x1.14x1.26 inch (LxWxH)

Temperature Setting:

Press STC key and the LED will flash. Press STC (+) and C/F (-) key to reach the set temperature value, wait for 3s, and the module will automatically save the parameters and exit.

Indicator:

Lights on, relay closed; Lights out, relay disconnected.

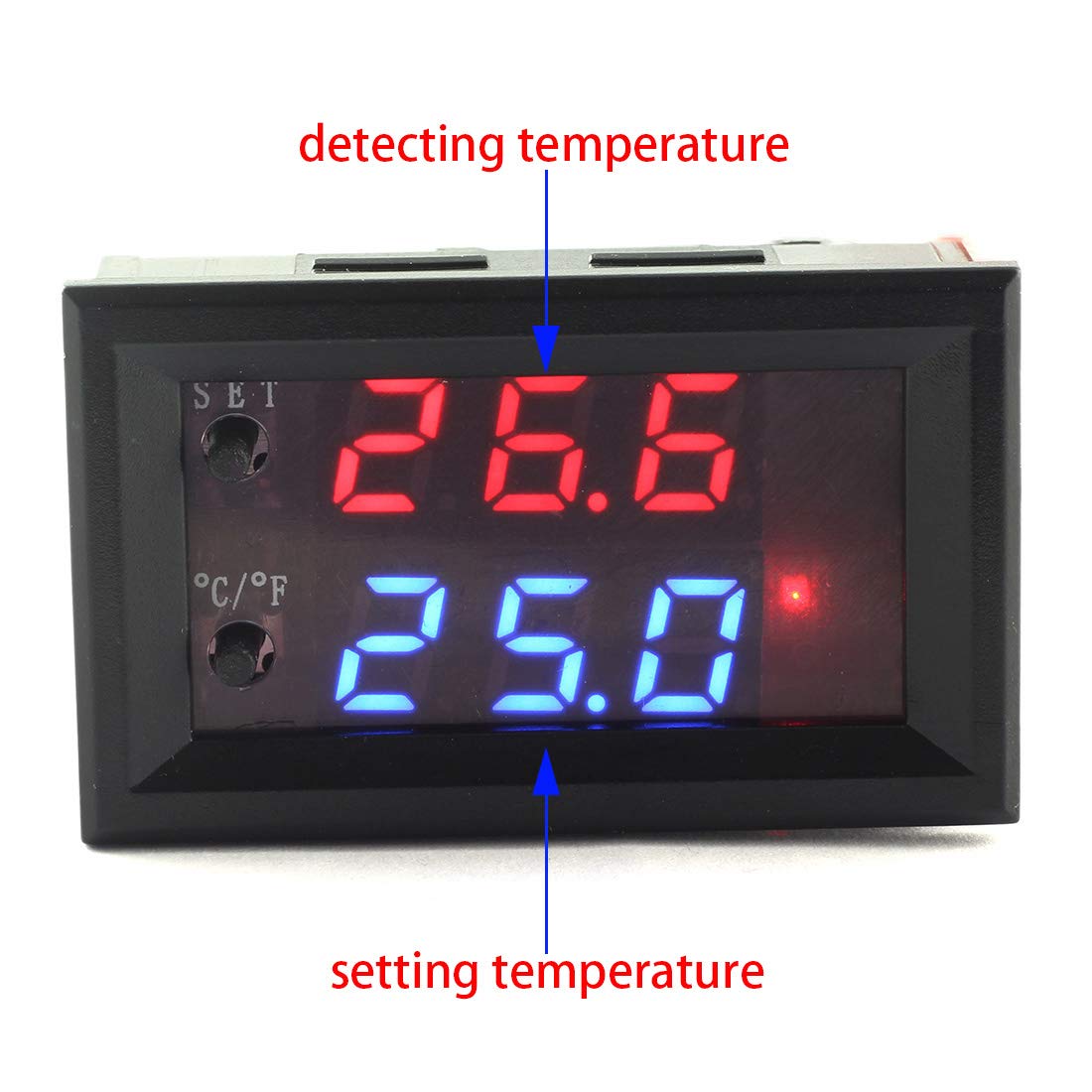

LED Display:

Red: Measuring Temperature; Blue: Setting Temperature

LL: Means the sensor is open

HH: Indicates that the temperature exceeds the measurement range of the module

--: Indicates that the module is under high temperature protection

Programmable Thermostat Introductions (Code, Explain, Setting range, Factory setting):

P0, Heating/Cooling, H/C, C

P1, Return difference, 0.1-30, 2

P2, Set limit maximum, +110, 110

P3, Set limit minimun, -50, -50

P4, Temperature correction, -15 - +15, 0

P5, Delay start, 0-10, 0

P6, High temperature alarm, -50 - +110, OFF

P7, Celsius/Fahrenheit, CS/FH, CS

P8, Factory reset, ON-OFF, OFF

Package Content:

1pc Temperature monitoring controller
